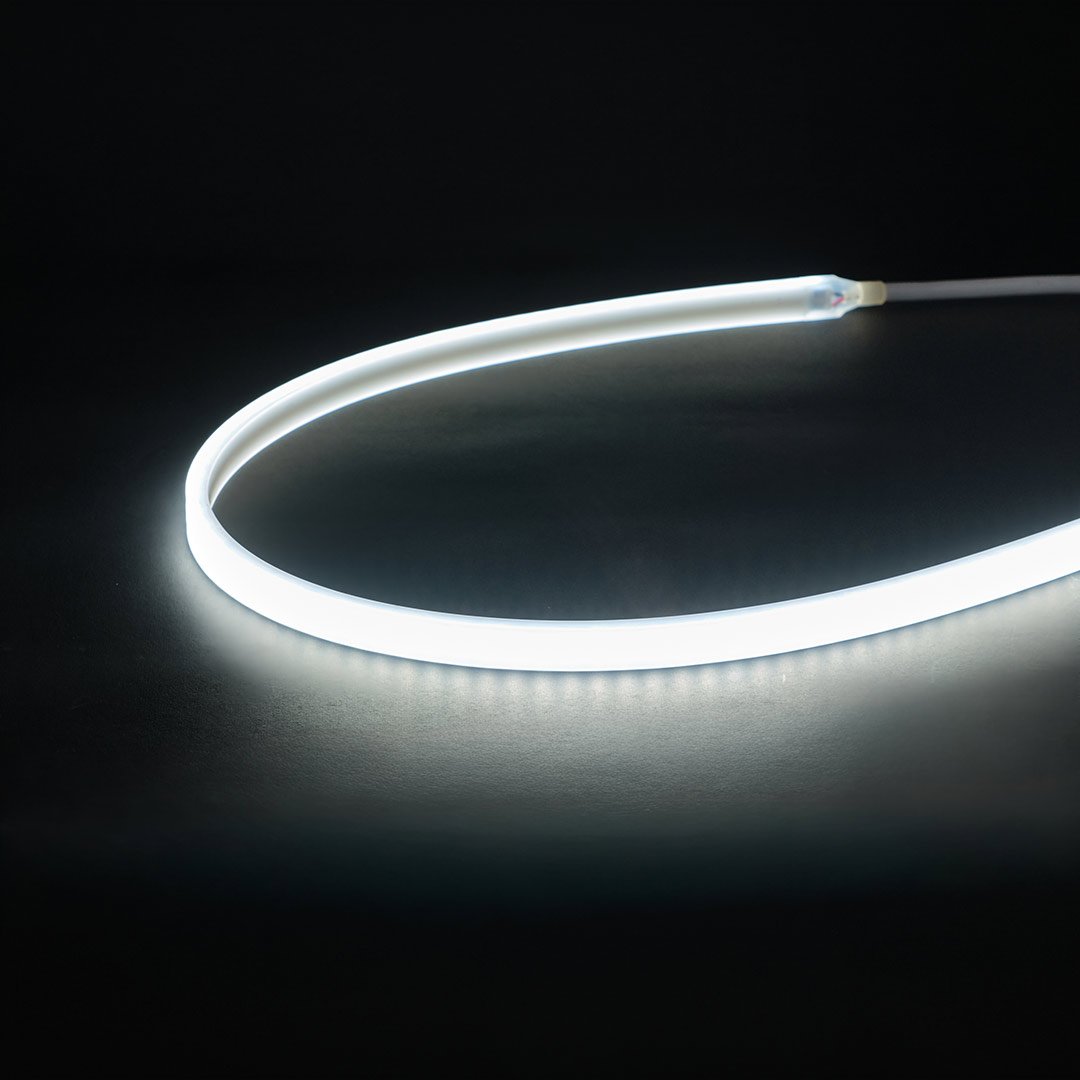

LXES Striplight LED
• IP67-rated, protected by flexible injection-moulded silicone for robust dust and water ingress protection, suitable for harsh environments.
• Available in 24V DC variants, with additional voltage options available subject to project requirements.
• Available in white for continuous illumination applications and coloured versions for safety and signalling systems.
• Equipped with high-brightness SMD LED chips, delivering high visibility and uniform illumination.
• Designed for long service life exceeding 50,000 hours (L70), providing durable, energy-efficient operation with low power consumption.
Description
The LXEX-ST Series is an ATEX/IECEx-certified linear LED luminaire engineered for hazardous area installations (Zone 1/21 & 2/22), compliant with EN IEC 60079 standards (Ex mb op is IIC/IIIC). The system incorporates high-efficiency SMD LED arrays delivering up to ~1000 lm/m with a 100° wide beam distribution and stable photometric performance (CRI ≥80), ensuring uniform, low-glare illumination for both general and task lighting applications. The luminaire is fully encapsulated within an IP67/IK10-rated injection-moulded silicone housing with an integrated diffuser, providing superior ingress protection, impact resistance, and long-term durability in harsh environments (–40°C to +80°C). Multi-voltage compatibility (24–48V DC/AC) combined with sealed IP67 interconnects enables safe, flexible installation across extended runs. Certified for use in explosive gas (IIC) and dust (IIIC) atmospheres, the LXEX-ST Series offers a robust, low-maintenance lighting solution for safety critical industrial applications.
Project Case Study
LMX delivered a custom-designed ATEX-rated LED strip, engineered specifically for EDF’s operational needs. EDF required a safe, reliable, and energy-efficient lighting solution for their multiple UK nuclear facilities. These potentially hazardous environments demand equipment that meets stringent ATEX safety standards while delivering ultra-bright, uniform illumination for detail work under challenging conditions. The LMX LXES ATEX strip has since become a trusted solution within EDF’s maintenance operations, supporting both routine and critical tasks across their sites
Review
“We required a specialised 110V ATEX-rated LED strip light with a 3-hour emergency option at Heysham Power Station. LMX LED delivered exactly what we needed. Their technical knowledge was exceptional, and they fully understood our stringent requirements. We were extremely impressed with both the product and the support we have received, thank you LMX LED.”
Denton Cunningham
EDF ENERGY
